Bimetal thermometer

作者：admin点击：99 发布时间：2022-12-27

一、purpose

WSS □ - series bimetallic thermometer is a kind of industrial instrument for on-site detection, which can directly read the temperature of the measured gas, liquid and steam from the reading plate. It is suitable for on-site temperature measurement and control in the medium and low temperature environment of petrochemical, mine, metallurgy, textile, military, pharmaceutical, food and other departments. This series of products has the advantages of sensitive response, easy reading, vibration resistance, no mercury hazard, stable performance, long service life, IP65 enclosure protection grade, etc. It can be widely used as an alternative to industrial mercury in glass thermometers.

二、structure

The bimetal thermometer consists of bimetal temperature sensing element, supporting tube, connecting device, indicator panel, etc. The bimetal temperature sensing element is made of multiple coils of straight spiral bimetal, with one end fixed and the other end (free end) connected to the mandrel. When the temperature changes, the free end of the temperature sensing element rotates, and the mandrel drives the pointer to indicate the temperature of the measured medium on the indicator panel. Bimetal thermometers can be divided into axial type (angle type), radial type (diameter) and universal type according to the structure; According to its functions, it can be divided into four types: ordinary type (single indicator), live contact, remote transmission function and luminous.

Bimetal thermometer

三、主要技术指标

Nominal diameter of dial(mm)	Pointer length(mm)	Scope of use (℃)	Accuracy class	Tolerance(℃)	Support pipe pressure	time constant
Φ40	≈14	-80～40、0～120 -40～80、0～150 -20～100、0～200 0～50、0～300 0～100、0～400 0～500	1.0	range±1.0%	≤1.5MPa	≤40s
Φ60	≥23		1.5	range±1.5%
Φ100	≥36		(2.5)	range±2.5%
Φ150	≥57		(2.5)	range±2.5%

·Applicable ambient temperature: - 40~+85 ℃, relative humidity: 5~100%.

·The length of the support tube immersed in the measured medium is generally greater than 100mm to ensure the accuracy of measurement.

·The diameter of the dial is Φ 60, the maximum surface temperature is 400 ℃.

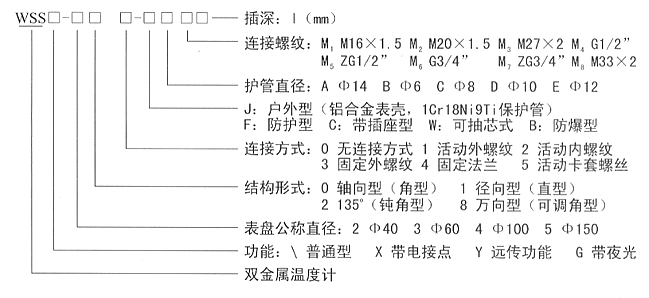

four、Model compilation method

five、Model and overall dimensions

Drawing No	model		Nominal diameter of dial(mm)	D (mm)	L1 (mm)	b (mm)	h (mm)	H (mm)	d (mm)	Connecting thread(M)	L (mm)

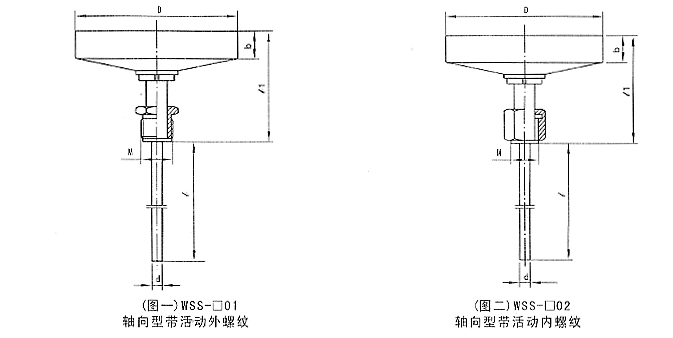

Figure 1	WSS-	201 301 401 501	Φ40 Φ60 Φ100 Φ150	Φ40 Φ60 Φ100 Φ150	58 63 86 85	17 17 25 22	/	/	Φ6 Φ8 Φ10 Φ12 Φ14	M16×1.5 M20×1.5 M27×2 M33×2 G1/2" ZG1/2" G3/4" ZG3/4"	75 100 150 200 250 300 400 500 750 1000 1200 1500 1750 2000 2500
Figure 2	WSS-	202 302 402 502	Φ40 Φ60 Φ100 Φ150	Φ40 Φ60 Φ100 Φ150	58 63 86 85	17 17 25 22	/	/

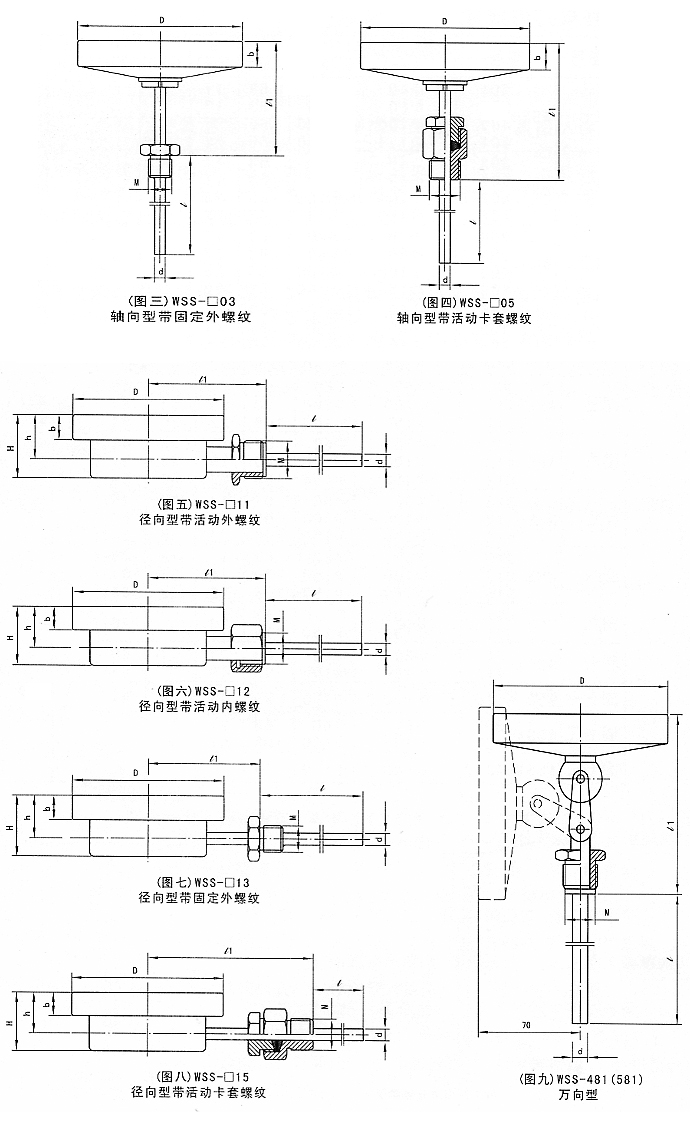

Figure 3	WSS-	203 303 403 503	Φ40 Φ60 Φ100 Φ150	Φ40 Φ60 Φ100 Φ150	58 63 86 85	17 17 25 22	/	/
Figure 4	WSS-	205 305 405 505	Φ40 Φ60 Φ100 Φ150	Φ40 Φ60 Φ100 Φ150	58 63 86 85	17 17 25 22	/	/
Figure 5	WSS-	311 411 511	Φ60 Φ100 Φ150	Φ60 Φ100 Φ150	67 90 106	17 25 22	38 53 50	48 67 64
Figure 6	WSS-	312 412 512	Φ60 Φ100 Φ150	Φ60 Φ100 Φ150	67 90 106	17 25 22	38 53 50	48 67 64
Figure 7	WSS-	313 413 513	Φ60 Φ100 Φ150	Φ60 Φ100 Φ150	67 90 106	17 25 22	38 53 50	48 67 64
Figure 8	WSS-	315 415 515	Φ60 Φ100 Φ150	Φ60 Φ100 Φ150	67 90 106	17 25 22	38 53 50	48 67 64
Figure 9	WSS-	481 581	Φ100 Φ150	Φ110 Φ160	163 176	20	/	70

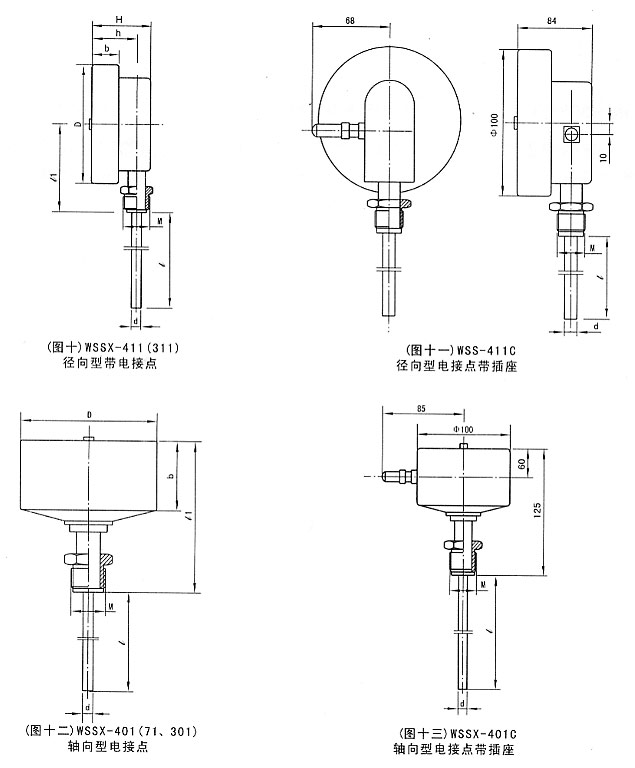

Figure 10	WSSX-	311 411	Φ60 Φ100	Φ60 Φ100	68 90	27 48	68	60 84
Figure 11	WSS-411C		Φ100	Φ100	90	48	68	84
Figure 12	WSSX-	301 401	Φ60 Φ100	Φ60 Φ100	68 105	27 51	/	/
Figure 13	WSSX-401C		Φ100	Φ100	125	/	/	/

six、Use and maintenance

1、During the storage, use and installation of bimetallic thermometer, it is required to avoid colliding with the supporting tube, bending and deformation of the supporting tube and using the case wrench.

2、All kinds of bimetallic thermometers should not be used to measure the medium temperature in open containers. Thermometers with live contacts are not allowed to work under strong vibration, so as not to affect the reliability of contacts.

3、When the pressure is greater than 1.5MPa, JX series protective tubes shall be selected.

seven、Ordering Instructions

1、When ordering, the product model, measuring range, connection method and specification, insertion depth, shell diameter, accuracy class, outer diameter of support pipe, etc. must be indicated.

2、Special requirements shall be specified.
