 Hot sleeve thermocouple (erosion resistant thermocouple) WR□K-01The measuring range is 0~600 ℃. It is mainly used to measure the temperature of steam pipes and boilers. The protection pipes are integrally drilled to improve their service life and strength. Special materials are resistant to erosion by special media. |
 |

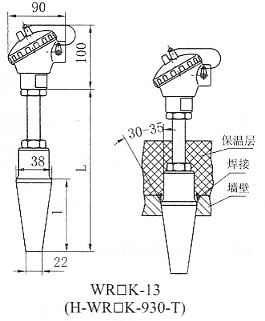

| High pressure high temperature thermocouple WR□K-13 The operating temperature is 0~800 ℃, and the pressure is less than 30MPa. Special materials are resistant to erosion by special media. |
 |
| Medium voltage medium temperature thermocouple WR□K-14 The operating temperature is less than 500 ℃ and the pressure is less than 14MPa |
 |

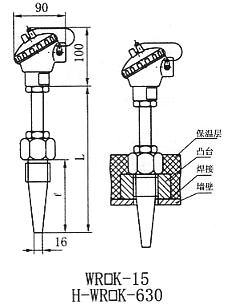

| Low temperature and low pressure thermocouple WR□K-15 The operating temperature is less than 260 ℃ and the pressure is less than 2MPa |
 |
| Boiler wall thermocouple (plug-in thermocouple) WR□K-11 Its hot contact is fixed on the heat conduction plate for surface temperature measurement of boiler tube wall, furnace wall and other equipment |
 |
| Thermocouple of flue and air duct WR□K-12 (H-WR□K-23S) The measuring range is 0~800 ℃, which is applicable to temperature measurement in flue and air duct |
| Spring loaded thermocouple (resistance) T-WR□K-800-Y T-WZPK-800-Y The pressure spring tension principle is used to compress the end face of the thermocouple (resistor) against the surface of the object to be measured, which is characterized by fast response and convenient installation. It is suitable for temperature measurement in bearings, equipment surfaces and small diameter pipes |
 |
| Motor winding thermal resistance WZG-010(Cu53) It is used to measure the surface temperature of motor winding, stator, etc., with the measuring range of - 50~150 ℃ |
 |

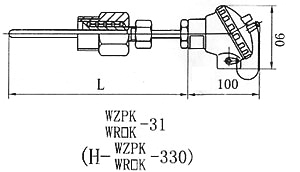

| Bearing thermocouple and thermal resistance WR□K-31(N-WR□K-330) WZPK-31(N-WZPK-330) It is mainly used to measure the bearing temperature of various bearing equipment in the power station. Since the measuring end is close to the bearing surface to be measured, the measurement accuracy is ensured |
 |

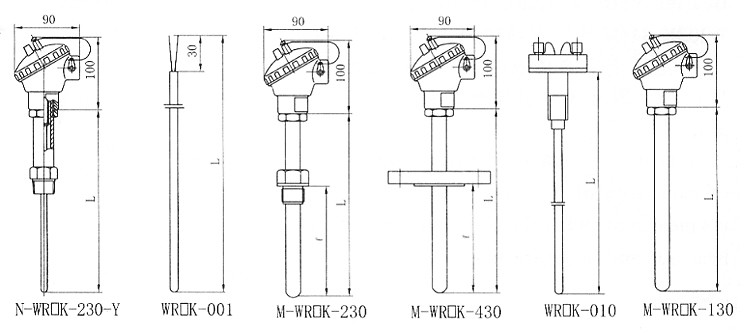

| Oil resistant thermocouple (resistance) T-WR□K-010 T-WZPK-010 The outgoing line adopts oil resistant conductor, the temperature of thermal resistance is 280 ℃, and the temperature of thermocouple is 400 ℃ |
 |

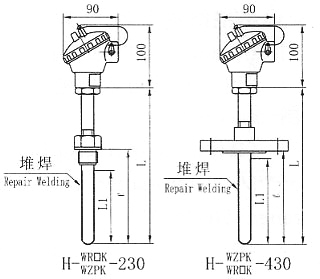

| Armored wear-resistant thermocouple (resistance) H-WR□K-230 H-WZPK-230 H-WZPK-430 H-WR□K-430 The surface is welded with wear-resistant hard alloy, which is suitable for washing fly ash particles, and the operating temperature is 0~900 ℃ |
 |
| Other types of thermocouple (resistance) |
 |
