Wear resistant thermocouple and protective sleeve of refinery catalytic unit

作者：admin点击：140 发布时间：2022-12-27

High temperature and wear resistant sheathed thermocouple　M-WR□K-4G30-M
The measuring end is made of wear-resistant alloy structure or high temperature resistant corundum tube, which has the advantages of long service life and good wear-resistant performance, and is suitable for wear-resistant and high temperature resistant media.

Explosion proof thermocouple with wear-resistant belt shut-off valve

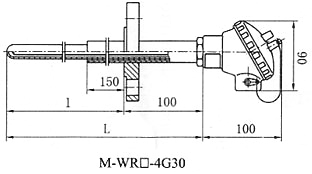

High temperature thermocouple　M-WR□-4G30 The outer sleeve is made of high aluminum ceramic or corundum, which has good corrosion resistance. The thermoelectric electrode is made of platinum rhodium platinum precious metal wire, and the operating temperature is 0~1600 ℃.

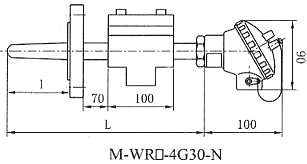

Wear resistant belt shut-off valve thermocouple M-WR□-4G30-N It has the characteristics of wear resistance and corrosion resistance, and is suitable for temperature measurement in the oil refining process. In the long-term use, if the casing leaks oil, you can rotate the cutting handle to cut off the thermocouple and close the oil leakage to ensure safety. The measurement range is 0~1150 ℃.

Wear resistant and anti leakage thermocouple　M-WR□K-4G□0-M.Ka
It is suitable for temperature measurement in the oil refining process. The product is wear-resistant and corrosion resistant. In the long-term use, if the casing leaks oil, the ferrule screw has been tightly pulled on the surface of the armored couple, completely isolating the oil leakage at the lower part, reducing manual operation. The measuring end is equipped with wear-resistant alloy steel, which is higher than the previous spraying temperature. It is an indispensable temperature measuring element in the refinery.
